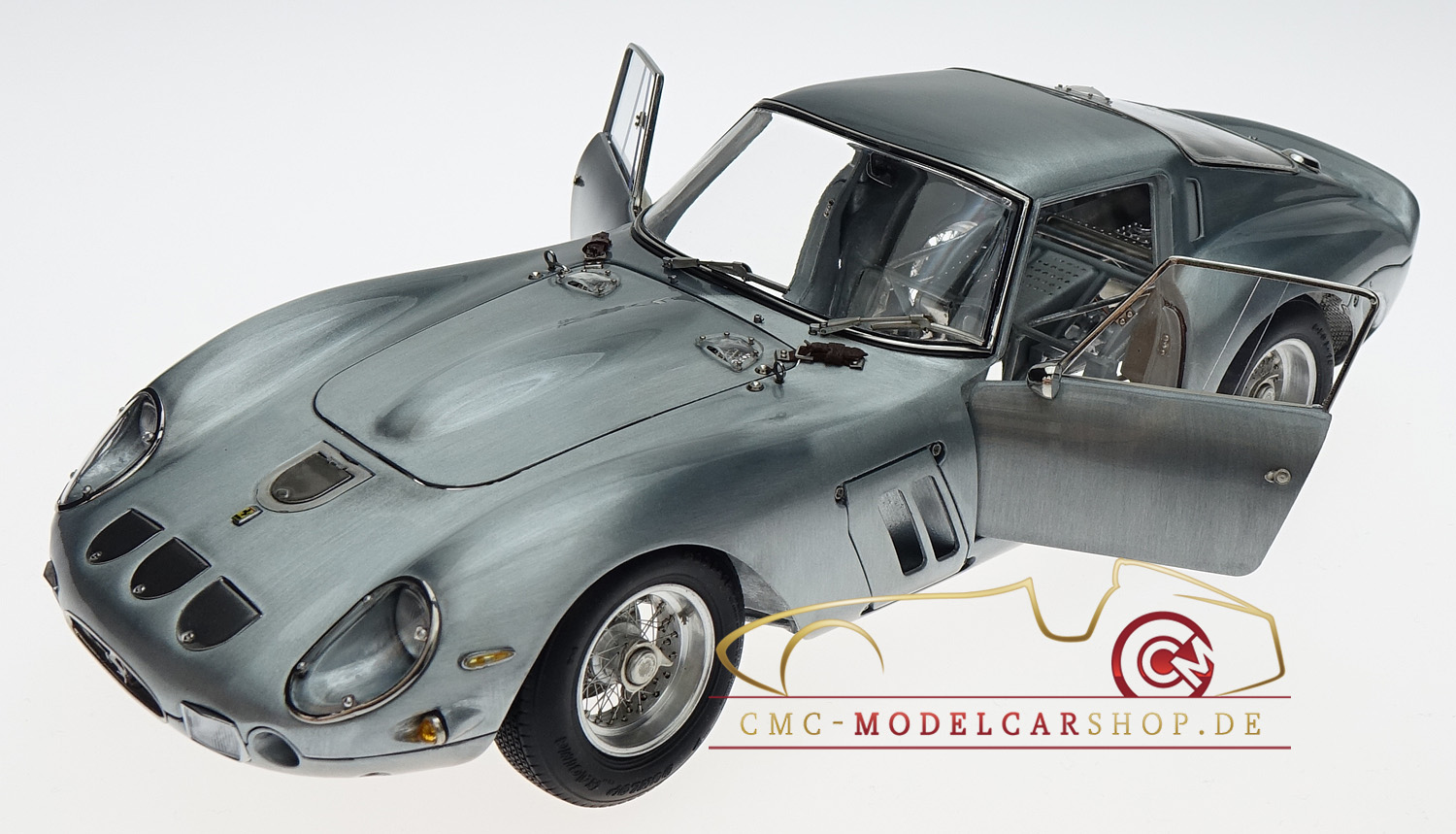

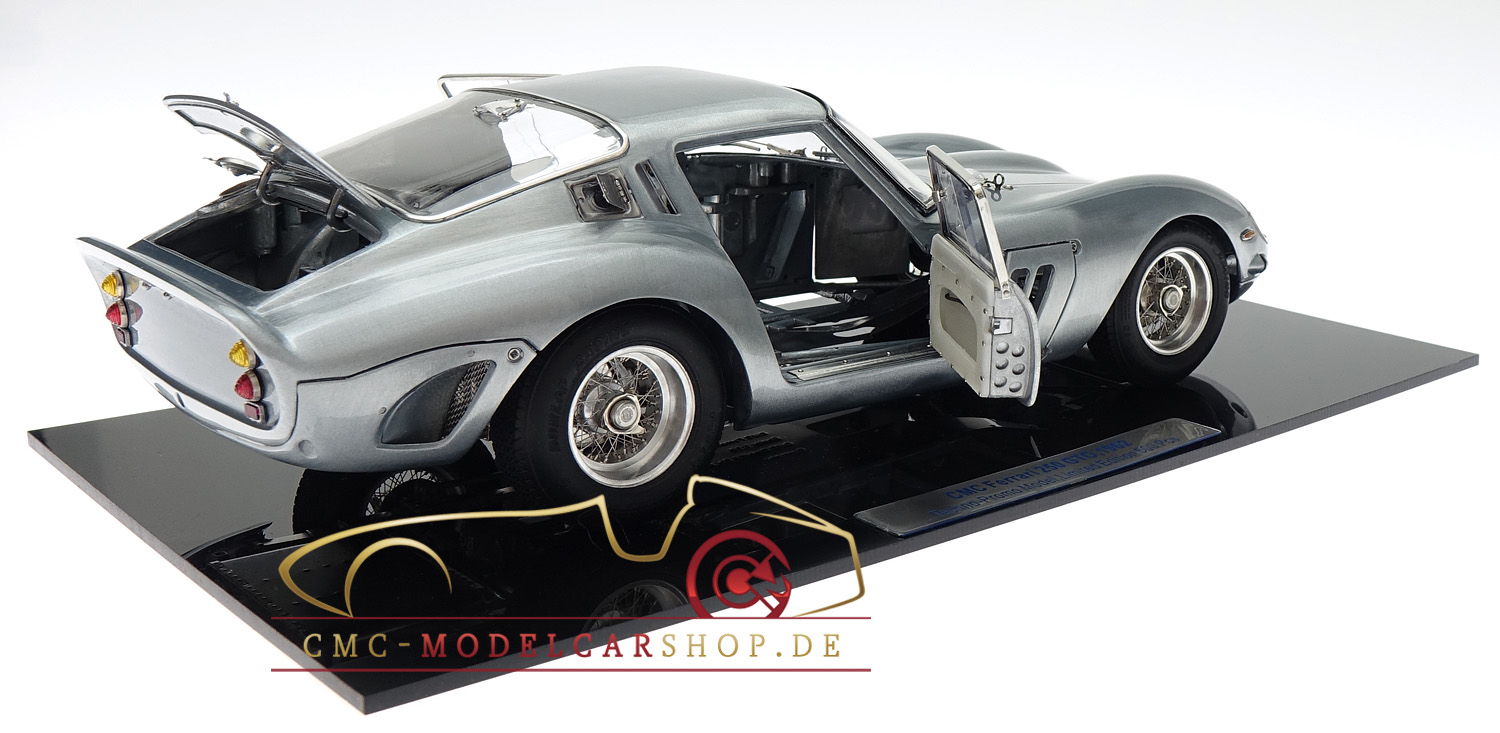

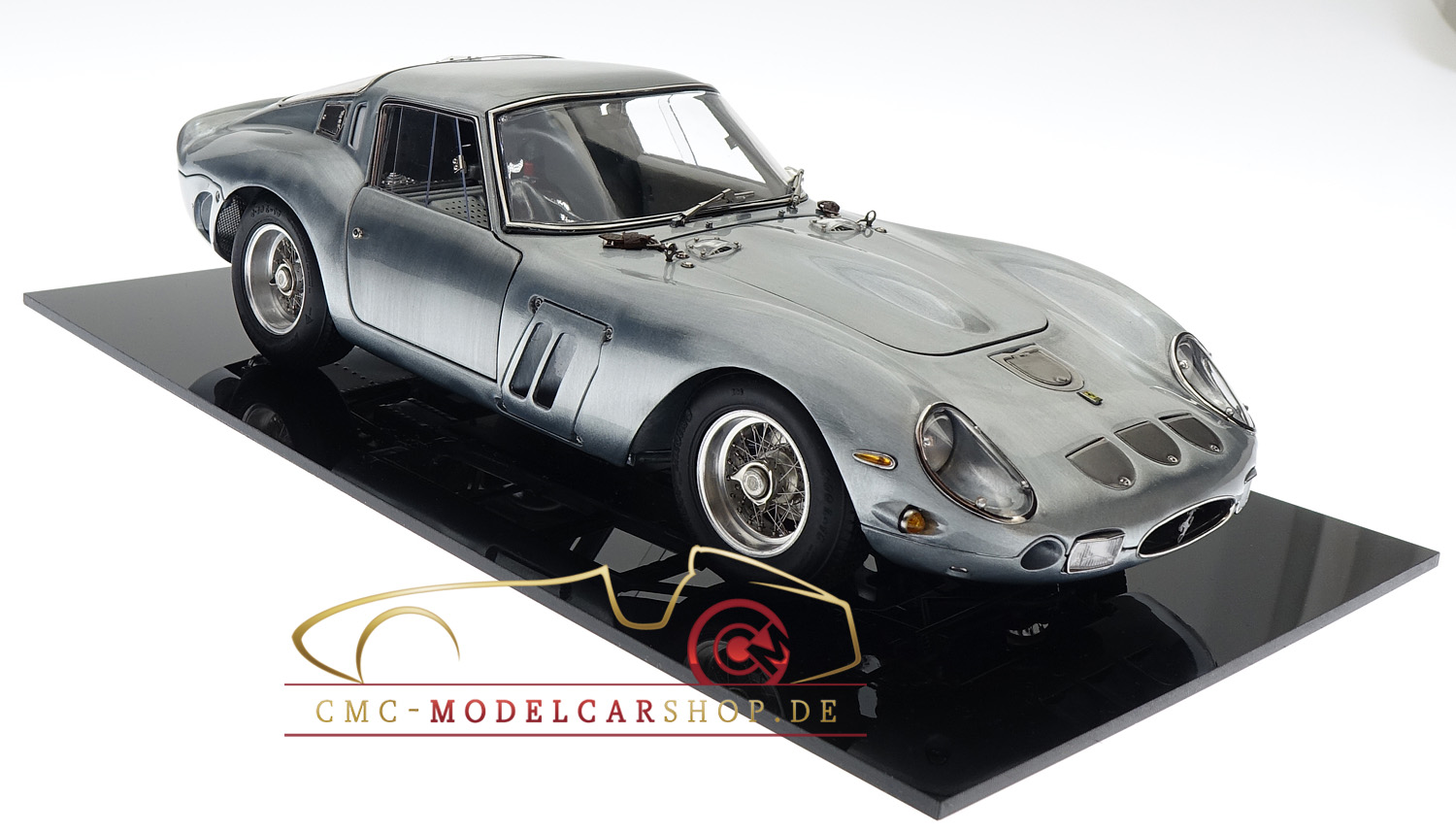

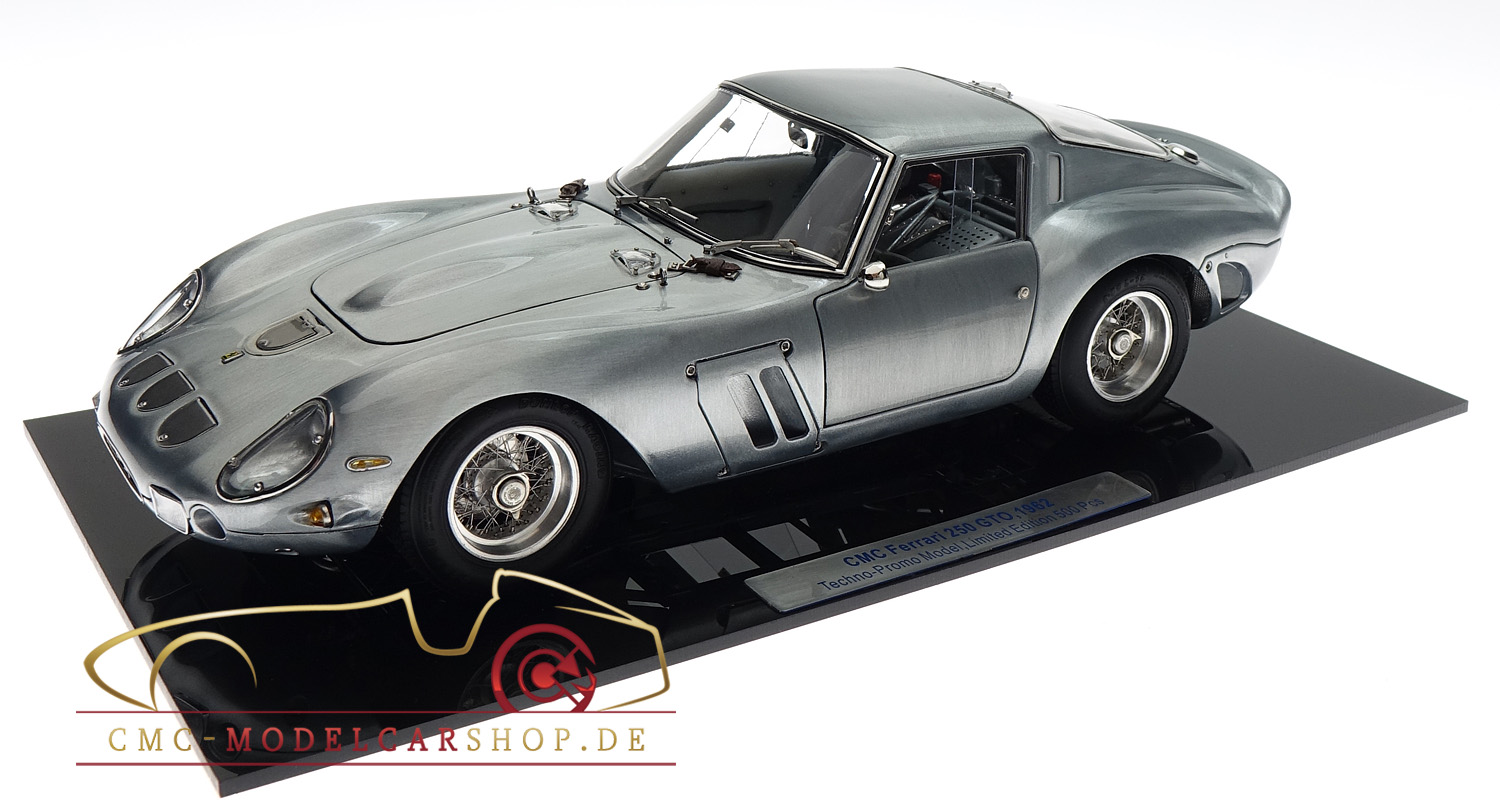

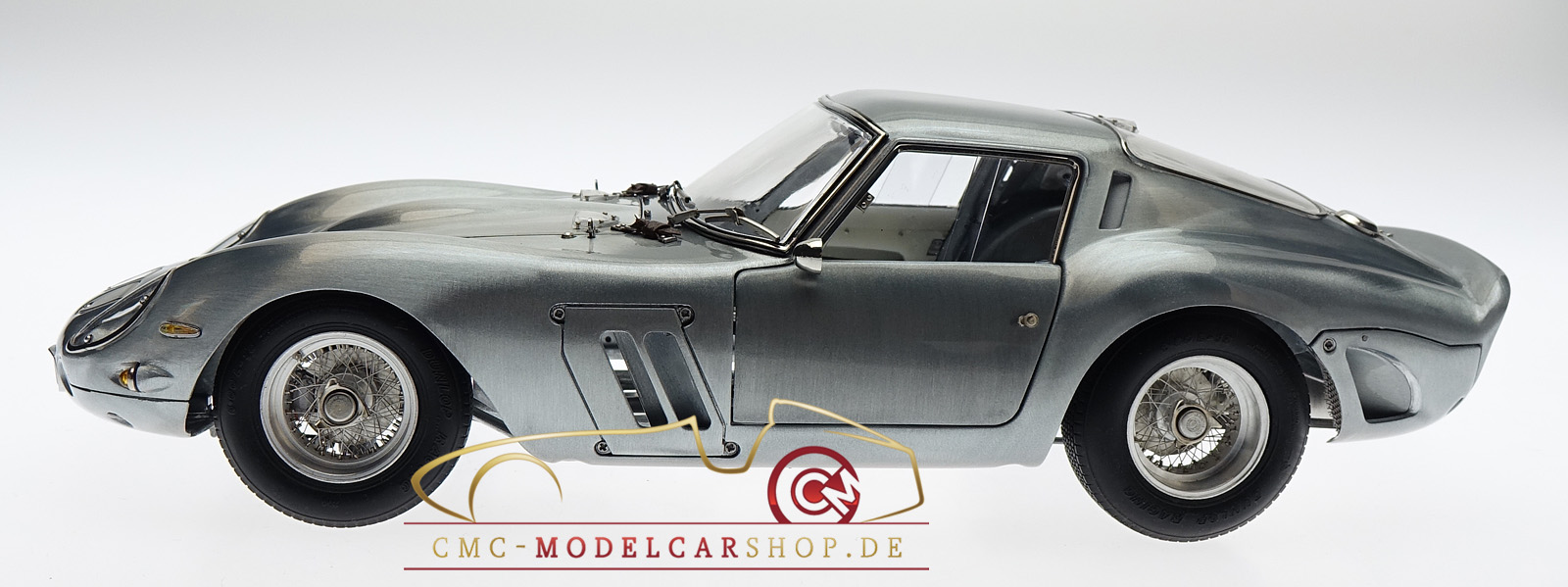

CMC Ferrari 250 GTO, 1962 Techno-Promo Model

1.295,00 EUR

incl. VAT excl. shipping costs

product description

A masterpiece of architecture model: CMC Ferrari 250 GTO, 1962 Techno-Promo Model
(This model is without interior and without engine)

Congratulations to you on the purchase of an extraordinary model that brings to light the unique technique and workmanship of CMC in crafting a classic vintage car.
Technical data of the CMC model:
  1. Model: Fertigmodell, handmontiertes Präzisionsmodell
  2. Manufacturer: CMC GmbH, Classic Model Cars, Germany
  3. Scale: 1:18
  4. Item-No.: M-173
  5. Single parts: more than 1,867
  6. Limited Edition: 500
CMC Legal DisclaimerThe use of racing team and/or driver names, symbols, starting numbers, and/or descriptions is solely for reference purposes. Unless otherwise stated, it does not imply that the CMC scale model is a product of any of these racing teams/drivers or endorsed by any of them.
Model details:
  • Hand-crafted metal precision model with a left-hand drive, built from 1,867 single parts, of which 1,234 are made of metal
  • Authentic recreation of the Le Mans racecar looks
  • Elegantly-replicated front end with removable covers of the three air intakes
  • One coolant filler under a flip-open cover in the bonnet; one oil-tank filler housed under the right side of the rear window with an openable cover
  • Intricate windscreen-wipers with real rubber blades
  • Functional engine hood, equipped with a supporting rod, functional locks for quick release, and leather belts and buckles for secure fastening
  • Functional doors with sliding windows
  • Trunk lid has a supporting rod and opens to reveal a spare wheel
  • Rear fuel tank filler with a flip-open cap
  • Perfectly-wired wheels with a light alloy rim, stainless steel spokes and nipples
  • Unscrew the Borrani central locking nuts (with side-dependent right- and left-hand threads) to remove the wheels
  • Highly detailed 12-cylinder V-type engine, complete with all aggregates, pipes and cabling
  • Meticulous replication of the interior and its racing accessories, such as roll cage and safety belts. Seats upholstered in real textile covers with leather trimmimgs
  • Well-integrated dashboard with a full array of instruments and controls on a wrinkle-finish-paint surface
  • Elaborate undercarriage that reveals authentically-replicated front and rear suspensions, oil tank for dry sump lubrication, and fuel tank (all being made of stainless steel) in addition to an impressive racing-style tailpipe of the exhaust system.
  • Detachable stainless-steel bottom plate, and a brilliant high-gloss finish
Special feature:3 covers for the additional air intakes above the radiator grille, also removable if needed.
Description of the original vehicle: The GTO from CMC is a metal model primarily built of zinc alloy. Working with this material, one is constrained by the limits that it sets to the minimal thickness and die-casting of a complex contour. This entails that CMC figure out a way to capture a sophisticated form faithfully and still uphold the benchmark quality of CMC.

Indeed, common sense has it that sophisticated body forms do not lend themselves to conventional zinc die-casting unless compromises are made in regard to wall thickness and contour quality. But people at CMC found this view disagreeable and resolved to break new ground.

Following the new approach developed at CMC, a sophisticated body form is to be dissected into sections that allow for precision casting. If a section is of a particularly complex shape, certain parts may have to be cast separately or made of other metal before the section can be fitted together. To join the parts, gluing or soldering may do the job, but we opt for a more stable and lasting solution – use of screws. With this technique, it is possible to manufacture the top and bottom parts of a body individually and then have them joined as a whole. The same process applies to the making of the front and rear ends of this replica.

Now consider the air vents and funnels behind the front and rear sanders. How do we manage to assemble these independently-made pieces seamlessly? Once the parts are fitted into place, the crevices, including the screw heads, are filled with a special putty before they are carefully sanded, polished, and leveled. A test of form stability will be performed to finish the production process. The result is a flawless, perfectly shaped contour surface with a wall thickness in the desired range of specifications.

This is what we call "innate value" -- a painstaking craftsmanship that becomes invisible in the finished product, but contributes significantly to its acquisition of a flawless beauty and unmatched quality.
Technical data of the original vehicle:
  1. Two-seater coupé body (Berlinetta) made of aluminum on a tubular frame with side trellis-frame reinforcement
  2. Engine:12-cylinder V-engine with a 60⁰ cylinder angle and dual overhead camshafts
  3. Dry sump lubrication
  4. Bore x stroke: 73 x 58.8 mm
  5. Displacement: 2,953 cc
  6. Compression: 9.8 : 1
  7. Maximum output: 300 hp at 7,500 rpm
  8. Top speed: approx. 280 km/h
  9. Mixture preparation: 6x Weber 38 DCN-dual carburetor
  10. Transmission: Synchronized 5-speed manual rear-wheel drive
  11. Suspension: Front independent suspension on trapezoidal whishbones with coil springs; rear rigid axle with longitudinal leaf springs, Koni shock absorbers, and Watt linkage
  12. Brakes: Disk-brakes all around
  13. Wheelbase: 2,400 mm
  14. Track front: 1,354 (1,351)
  15. Track rear: 1,350 (1,346) mm
  16. Vehicle length: 4,325
  17. Vehicle wide: 1,600 mm
  18. Vehicle height: 1,210 mm
  19. Curb weight: approx. 900 kg
  20. Construction period: 1962-1964
  21. Quantity: 36 pcs. + 3 units with a 4-liter-engine
