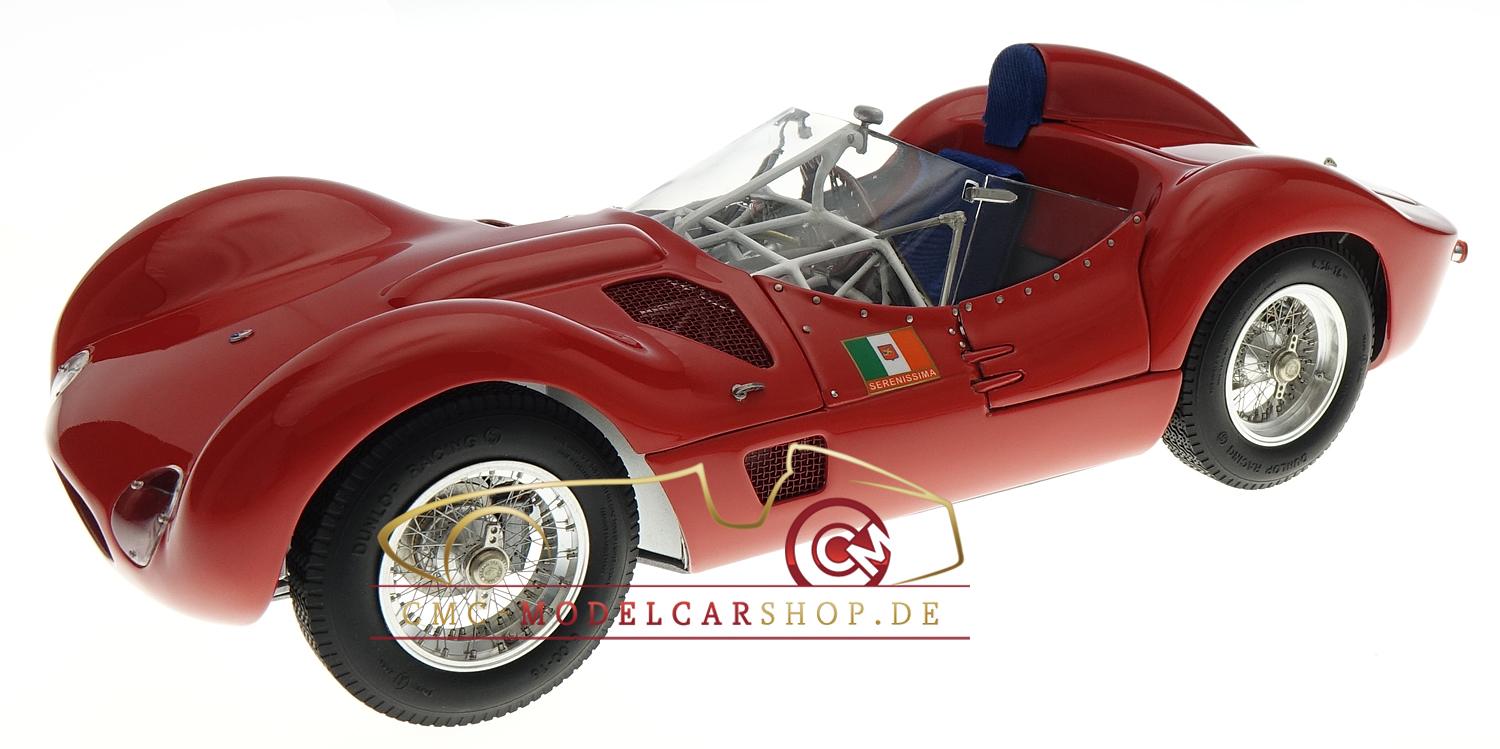

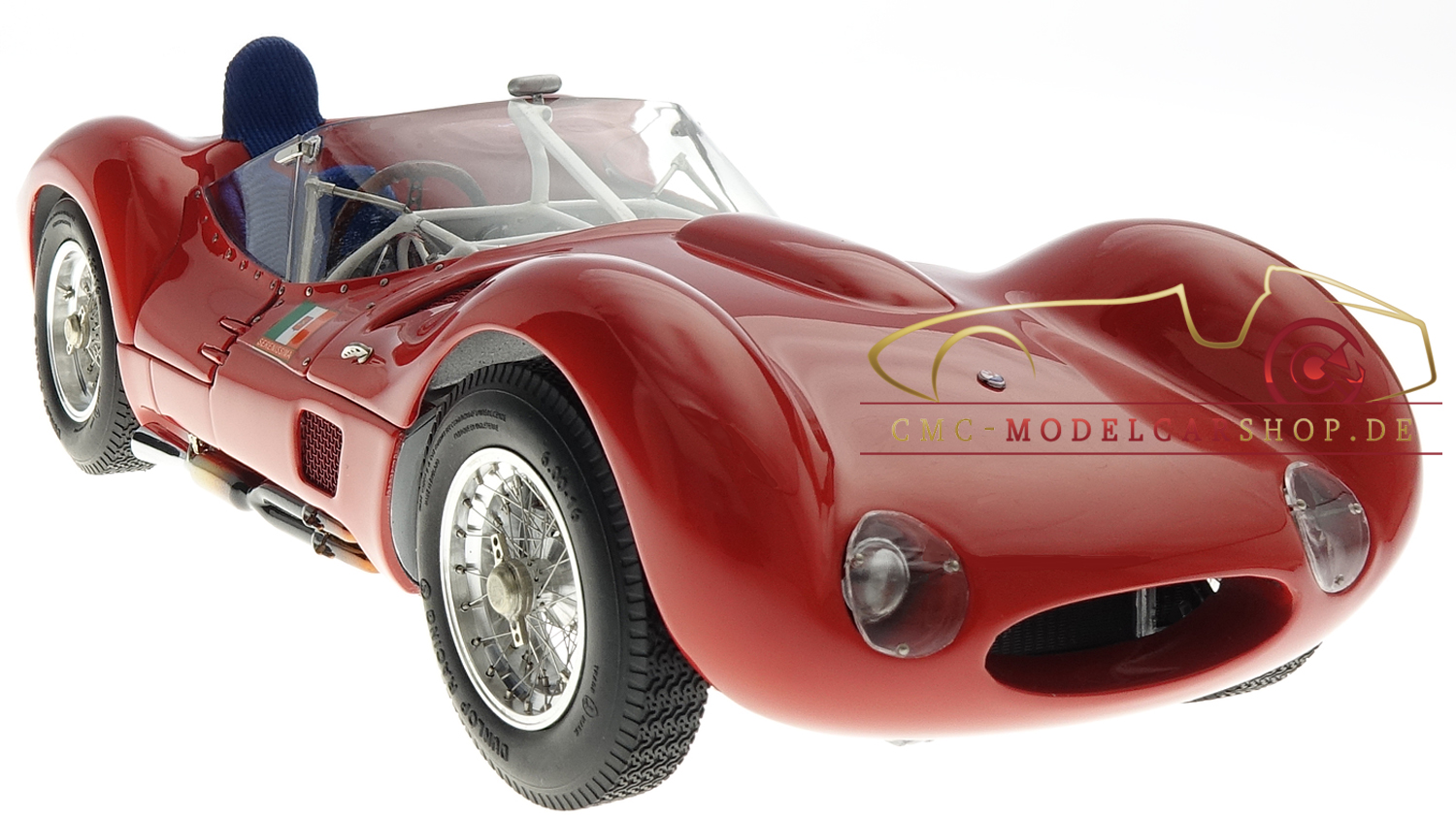

CMC Maserati Tipo 61 “Birdcage”, #29 red, Goodwood Revival 2008

A masterpiece of architecture model: CMC Maserati Tipo 60 "Birdcage", red, Goodwood Revival 2008

Technical data of the CMC-model:

1. Model: Precision model, hand-assembled
2. Manufacturer: CMC GmbH, Classic Model Cars, Germany
3. Scale: 1:18
4. Item-No.: M-280
5. Color: red
6. Limited Edition: 1,000

Model details:

• Hand-assembled model composed of 1,533 parts
• A true-to-the original filigrane metal space-frame

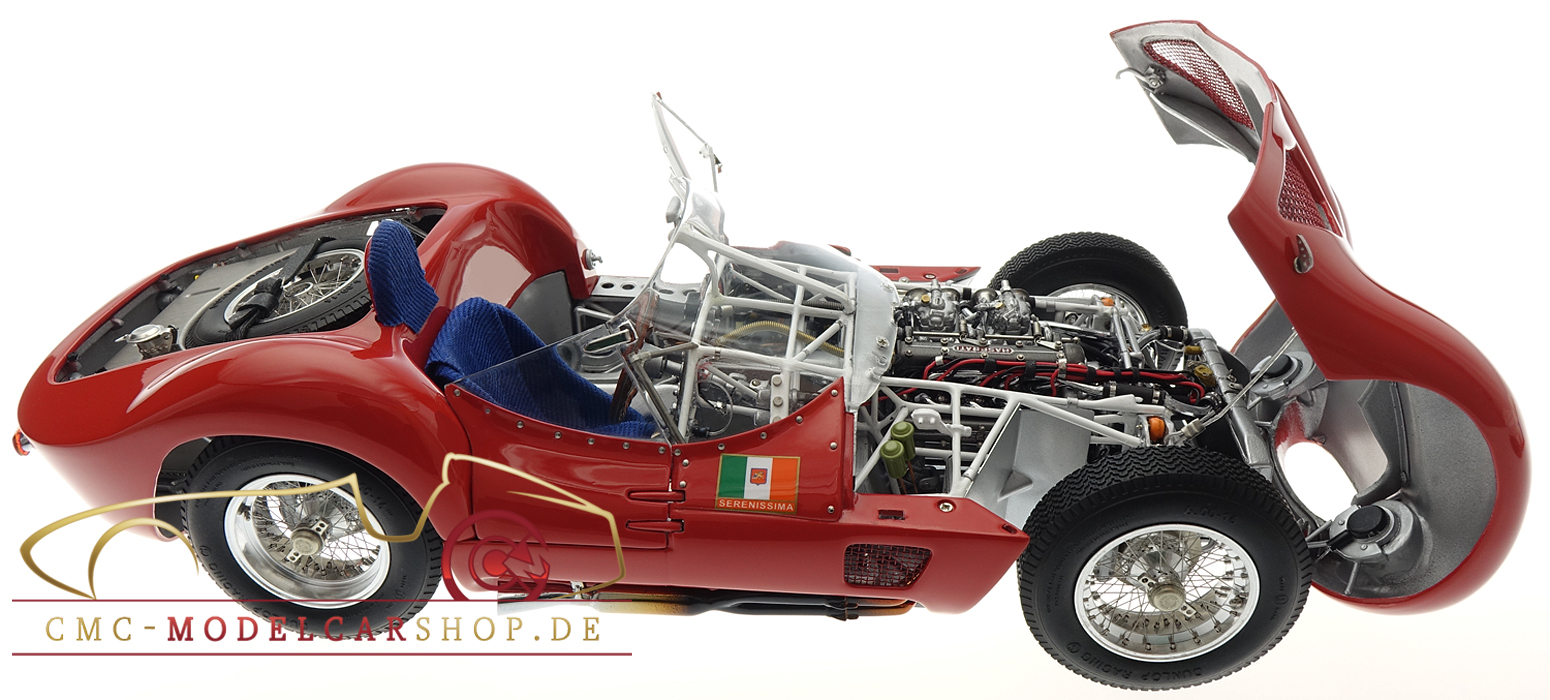

• Front hinged engine hood with functional locking mechanism
• Highly detailed engine with all aggregates, piping, and cables
• Oiltank with movable tank cap
• Air scoop for the cooling of the floor room well made of metal
• Dashboard with detailed instruments
• Bucket seats covered with textile
• Moveable doors on filigrane hinges

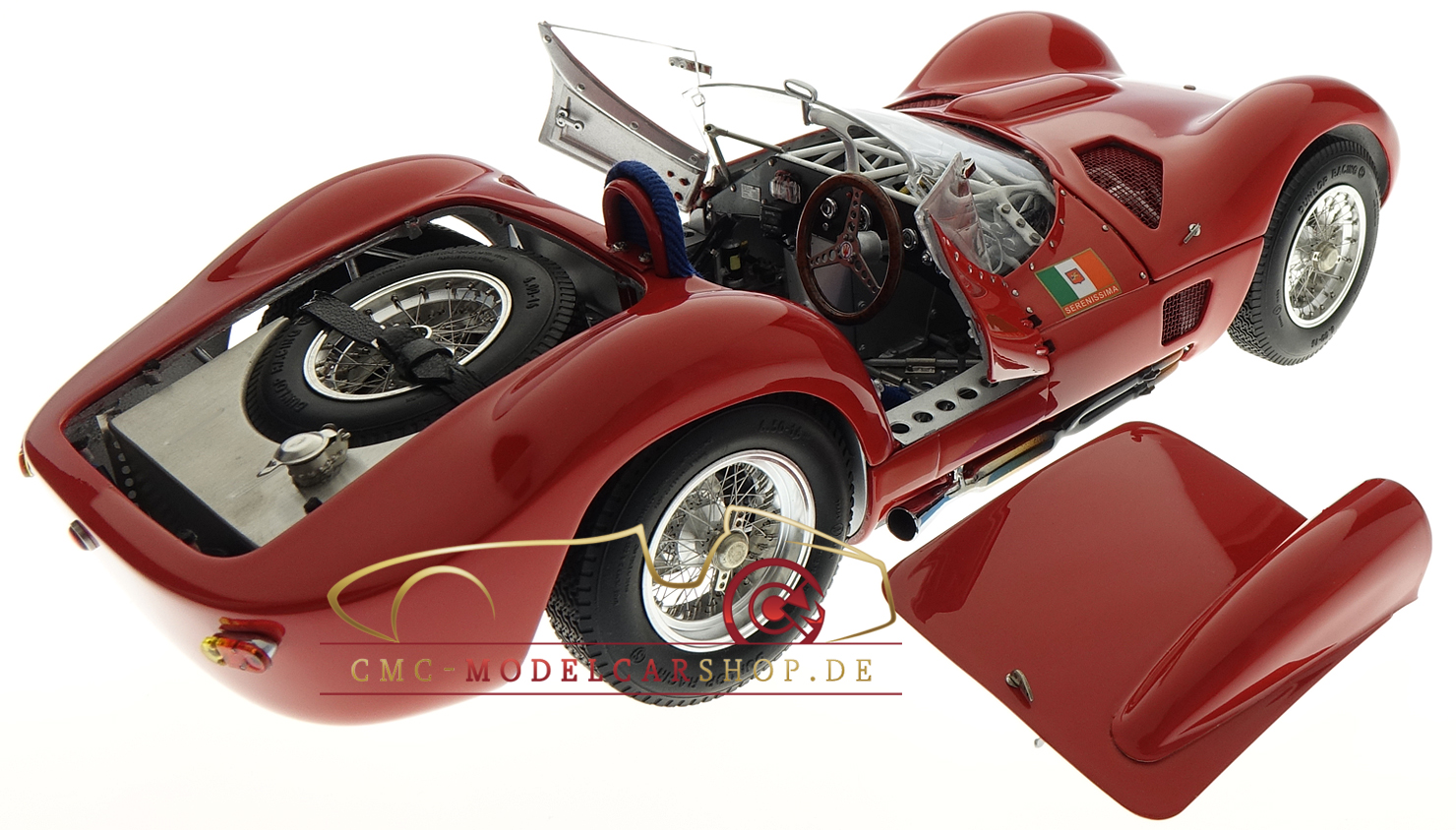

• Removable rear-end cover with functional locking mechanism
• Metal fuel tank with the filler neck and movable cap
• Removable spare wheel, fastened with a leather belt
• Dismountable spoked wheels on aluminium rims. Stainless-steel spokes wired by hand
• Baseplate can be unscrewed to offer an even closer look to the space frame
• Rivited stiffeners used for cockpit floor plate of metal
• Single wheel suspension in the front with twin triangular transverse control arms, including coil springs and telescope shock absorbers
• De-Dion rear axle with cross-installed compound spring of metal and telescope shock absorbers

Description of the original vehicle: The Maserati Tipo 60/61, designed by Giulio Alfieri, was built exclusively for customers from 1959 to 1961; there was no factory production due to the company's difficult economic situation at the time. With 22 vehicles, total production was very modest. The car became known as the Maserati “Birdcage” (“Vogelkäfig”), an allusion to the unusual tubular lattice frame weighing only 30 kg and consisting of more than 200 thin-walled steel tubes with a small diameter, but at the same time strength similar to a much more expensive monocoque. The unladen weight is 600 kg.
The hood of the “Birdcage” is very flat, because the in-line four-cylinder engine with initially 2.0 l and later 2.9 l displacement and an output of 250 hp at 6500 rpm is installed at an angle of 45 degrees so that the air flow is very favorable. Thanks to a wide range of aerodynamic optimizations (including a very low windscreen windshield, tightly enclosed front wheels, trailing edge at the rear), the vehicle achieves a top speed of 285 to 300 km/h, depending on the transmission ratio of the 5-speed gearbox. At the same time, these measures enable low fuel consumption, which is particularly important in long-distance races.
The wire-spoke wheels with 6.50 × 16 tires are suspended at the front on double triangular wishbones with coil springs and telescopic shock absorbers, rear is a De Dion axle with transverse leaf springs and telescopic shock absorbers. The vehicle is equipped with Girling disc brakes on all four wheels.
The vehicle with chassis number 2466 was sold in June 1960 to the Conte Giovanni Volpi, Venice, and raced under the flag of his racing team Scuderia Serenissima, whose coat of arms the car bears on the side, successfully took part in numerous international races. After changing hands several times, it was owned by Nick Mason, the former drummer of Pink Floyd, until a few years ago. The CMC model shows the car as it was in Nick Mason’s collection.

Technical data of the original vehicle:

1. Four cylinder in-line engine 45° sloped to the right
2. Single wheel suspension in the front
3. De-Dion rear axle with cross-installed compound spring
4. Maximum output: 200 hp at 7,800 rpm
5. Displacement: 1,990 cc
6. Top speed: 270 km/h
7. Wheel base: 2,200 mm
8. Total length: 3,800 mm
9. Total weight: approx. 600 kg
